I am a fan of quality and affordable gear. Modern manufacturing techniques and advancements in technology gave us a vast selection of gadgets in all shapes and sizes.

With the gaining popularity of live streaming, the demand for good audio interface and microphones is growing. The brand Maono, relatively speaking, is a newcomer that offers affordable audio products.

What we’ve got here is the Maonocaster Lite AU-AM200-S1, which is a portable podcasting gear. This is the very first product I’ve got the chance to try from this brand and I’m liking it so far. This bundle is ideal for someone who is just getting into podcasting or a musician looking for a cheaper alternative.

What’s in the box?

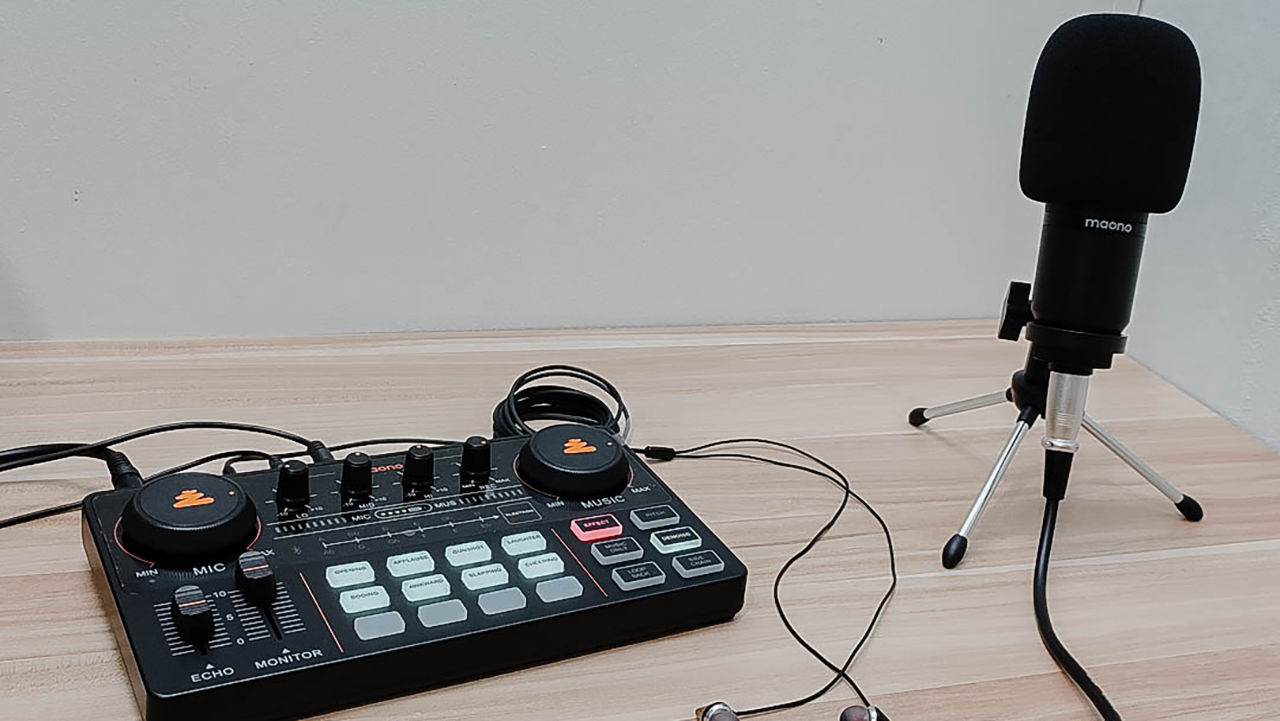

AM200 Podcast Console

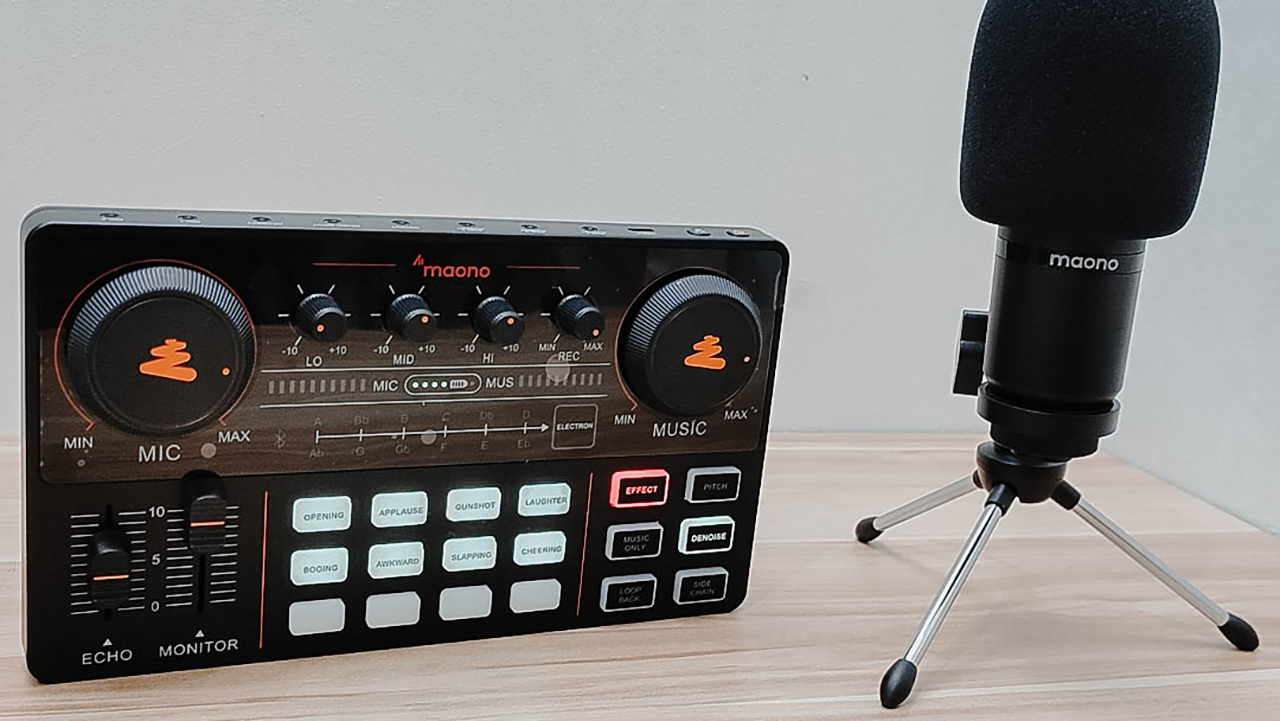

At first glance I actually thought it was a miniatured DJ turntable because of the two mini platters, but those are just volume knobs for the mics and music. It is a 3-channel mixer-type audio interface with five outputs. The two inputs are designated for mics and/or instruments and the other input is for music. Three outputs (3.5mm TRRS) for smartphones are available so you can stream simultaneously on different platforms.

A separate main and monitor output is available so you can listen to what your audience hears. Note that all the inputs and outputs are for 3.5mm jacks so if you are planning to plug in an instrument directly using a PL (1/4 inch) cable, you will need a 3.5mm adapter.

Plug and play

You can connect it to a computer with the USB A to C cable that is included. It doesn’t require any drivers, so, just plug it in and it’s good to go. It should be compatible to most DAWs (Digital Audio Workstation) for music recording. There is a 3-band EQ along with a “REC” volume knob which is like a “Send” knob to feed the audio to the devices it’s connected to.

Two crossfaders control the monitor volume and echo level. The “monitor” crossfader controls both the volume level for the (main) output and the monitor (output). I wish they installed separated levers for each one to control them independently.

This is also the case for the mic volume knob, it controls both the levels of mic 1 and mic 2. It would’ve have been handy if there are separate knobs for each but I think they did this design to fit in a compact box.

For outdoor streaming and recording

At the middle portion, you’ll notice along the LED indicator level signal is a battery indicator. Yes, this is also battery powered which makes it suitable for out of home live streaming, if you prefer creating something for your viewers elsewhere. You can easily recharge the batteries with the USB C cable.

There are also audio sample pads, buttons for sound effects and pitch shifters.

AU-PM360TR Microphone

This condenser microphone does not require phantom power. It runs below 5V, through the XLR to 3.5mm cable, unlike the industry standard condenser microphones. With its cardioid polar pattern, it will be more sensitive to sounds being captured in front of it.

Earphones

It comes with a pair of in-ear earbuds with a very long cable, enough to cover the distance for a typical on-desk live streaming. I think that the sound quality would be more appreciated by most modern pop listeners who like a lot of bass. Because it does deliver that low-mid thump.

Tripod

Out of the box, the microphone comes attached to the mini tabletop tripod. The microphone is detachable to the tripod, but if it is used handheld, it will pick-up a lot of hand noise. So, it is better to leave it on the tripod.

Other accessories included are: XLR to 3.5mm cable, two 3.5mm TRRS cables, USB A to USB C cable, and a windscreen cap.

Performance

For podcasting, it is very easy to use. It’s what the AU-AM200-S1 is made for and they did a good job. The microphone delivers a clearer and louder output compared to built-in mics in smartphones/laptops or headsets. You can control the volume of music accompaniment easily with the wheel knob, whenever you want to highlight the music or the voice.

Plus, the sound samples like the applause, laughter, cheering etc., are nice additions for some impromptu segments in your streams. You can also record your own samples by pressing the “loop back” button and assigning to any of the blank buttons available.

Since the microphone does not require a phantom power, the output is weaker compared to classic condenser microphones. The sound quality is good nevertheless.

For music recording, you can record your instruments with it on your preferred DAW. I connected my guitar to my digital effects processor with a 3.5mm headphones jack going to the mic input of Maono console. I noticed that the 2 mic inputs have high gain levels because my guitar was already clipping with the volume knob on the AM200 console at around 10 o’clock.

Usually, I set the volume on my guitar effects unit on almost full when I am recording with a different audio interface and mixers. But with the Maono AU-AM200-S1, I only had to set the volume of my guitar effects at 50 percent. This is good because it doesn’t have a designated gain knob. Just watch out for clipping- if it happens, you may want to lower the volume from the source.

I recorded a few short audio samples to demonstrate how the Maonocaster Lite AU-AM200-S1 handles recording. Please excuse my singing voice.

Mic only without echo(onboard) – vocal

Mic only with 50% echo(onboard) – vocal

Mic only with 100% echo(onboard) – vocal

Mic only without echo – vocal and guitar

Mic only with post-editing – vocal and guitar

Guitar through a digital effects processor

In a full band mix – Recorded vocals and guitars (both acoustic and electric)

Fully recorded demo

There are two functions that I have a few comments on:

Denoise — This is their “smart noise cancelling” feature that reduces background noise. It does its job as a noise gate, but unfortunately, you cannot adjust the settings (threshold, attack, range, etc.). Depending on how loud the ambient noise is, the mic sometimes gets a stuttering sound when this feature is engaged. If the room is quiet enough, there shouldn’t be any problem.

Music Only — This feature attempts to minimize the vocals in the music that you are playing, but similarly to the denoise, it sometimes affects the mic audio quality. I suggest looking for backing tracks of the songs you want to sing during your live stream beforehand.

Is the AU-AM200-S1 your GadgetMatch?

The Maonocaster Lite AU-AM200-S1 bundle is a usable and functional piece of gear. I see it as a bring-it-anywhere, all-in-one podcasting kit. It would have been more convenient (for me) if they included ¼ inch inputs for mics and instruments. Although, I guess it would kind of defeat its portable nature because most PL cables are thicker and heavier compared to the 3.5mm cables included in this bundle.

Pricing and Availability

The Maonocaster Lite AU-AM200-S1 retails for $109.00 and is available for purchase in Amazon, Shopee, and Lazada. You can check out their other products at the official Maono website.
